REDEFINE YOUR STANDARD OF A COST-EFFECTIVE CODING SOLUTION

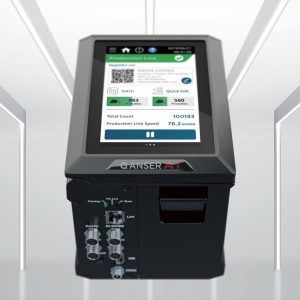

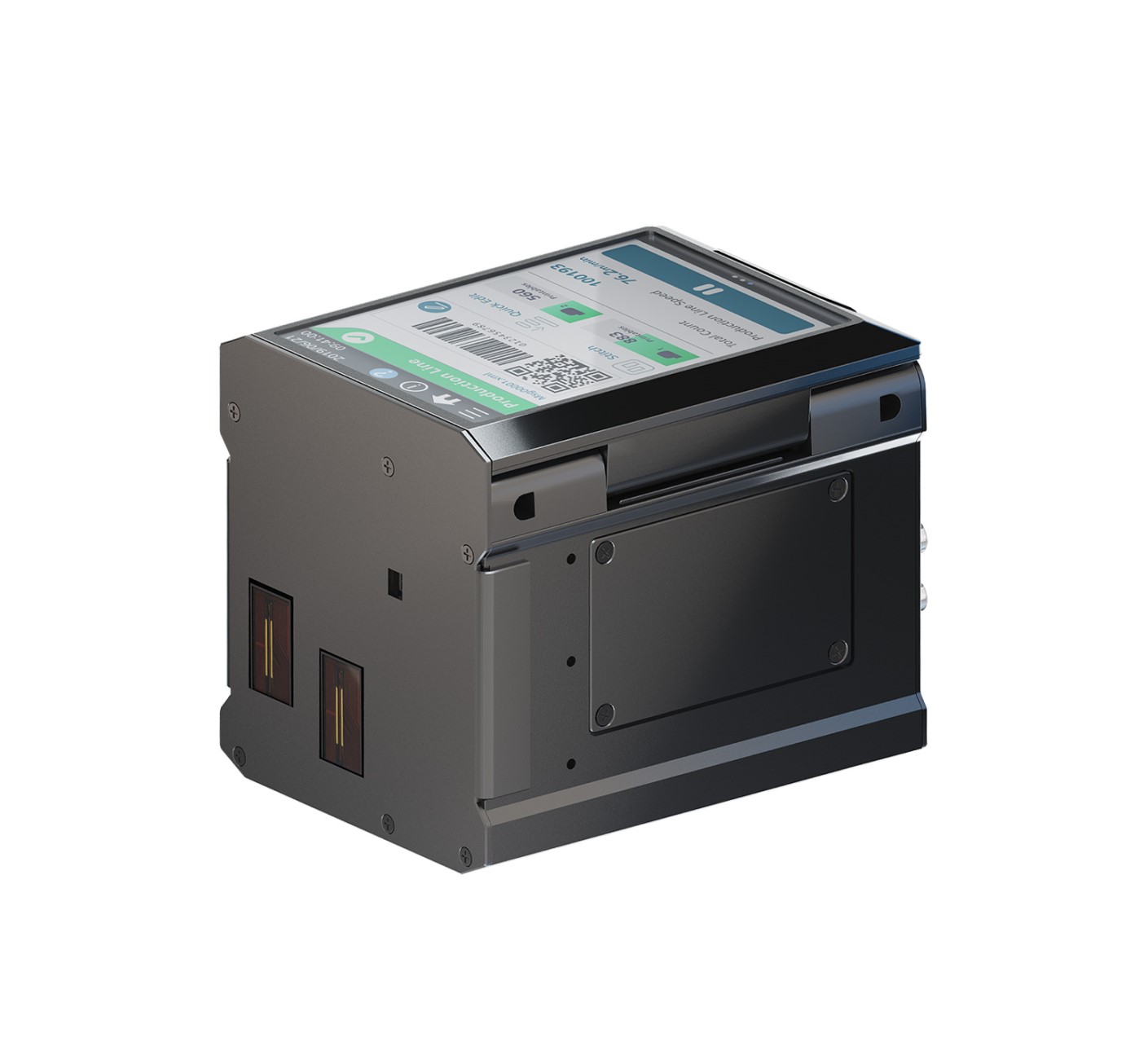

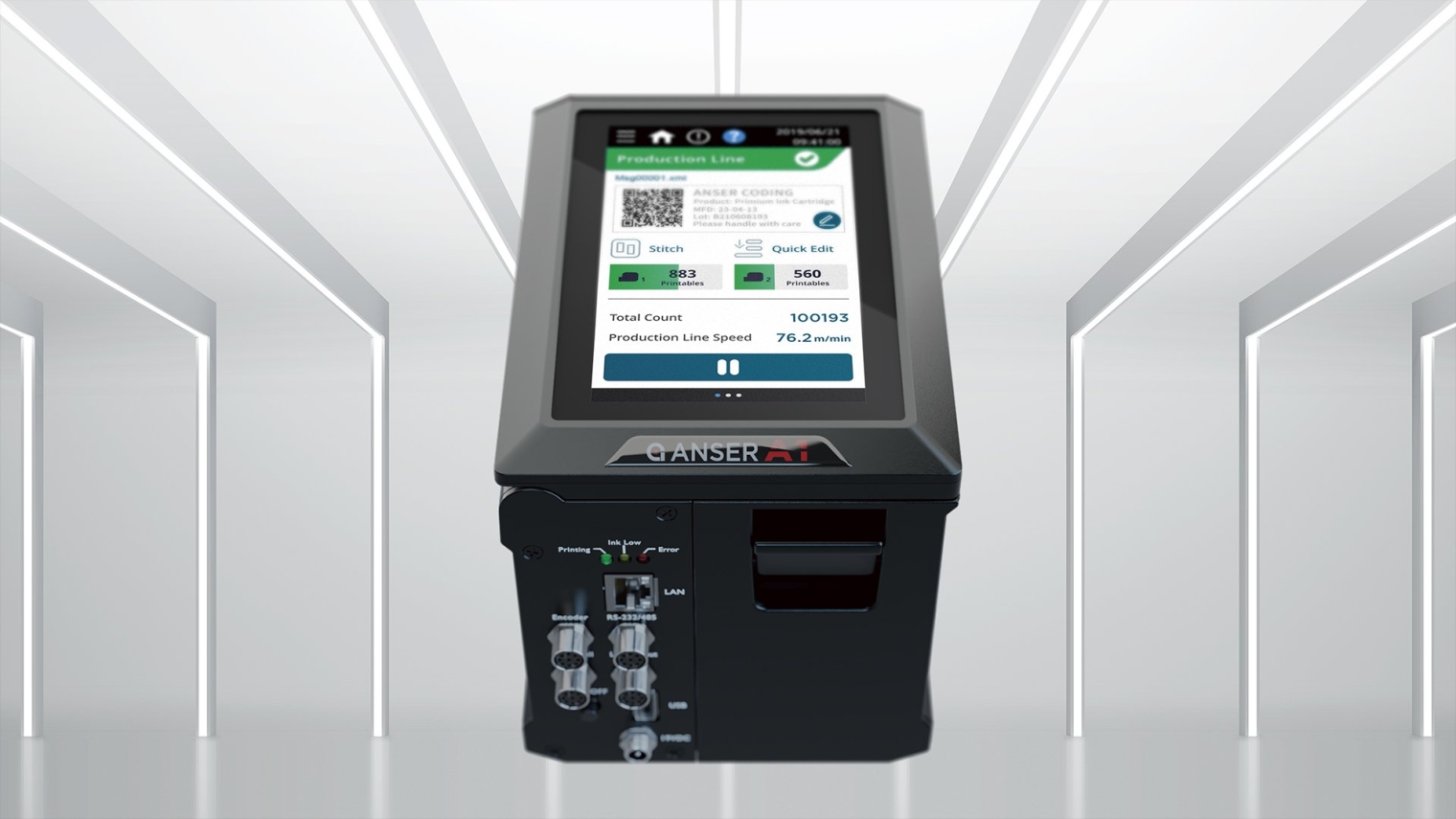

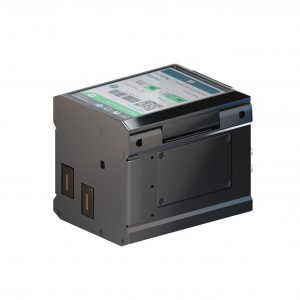

ANSER A1, the all-in-one TIJ industrial printer has arrived.
This premium printing solution is designed to meet the needs of box printing applications in a variety of industries, such as food and beverage, pharmaceuticals, electronics and more.

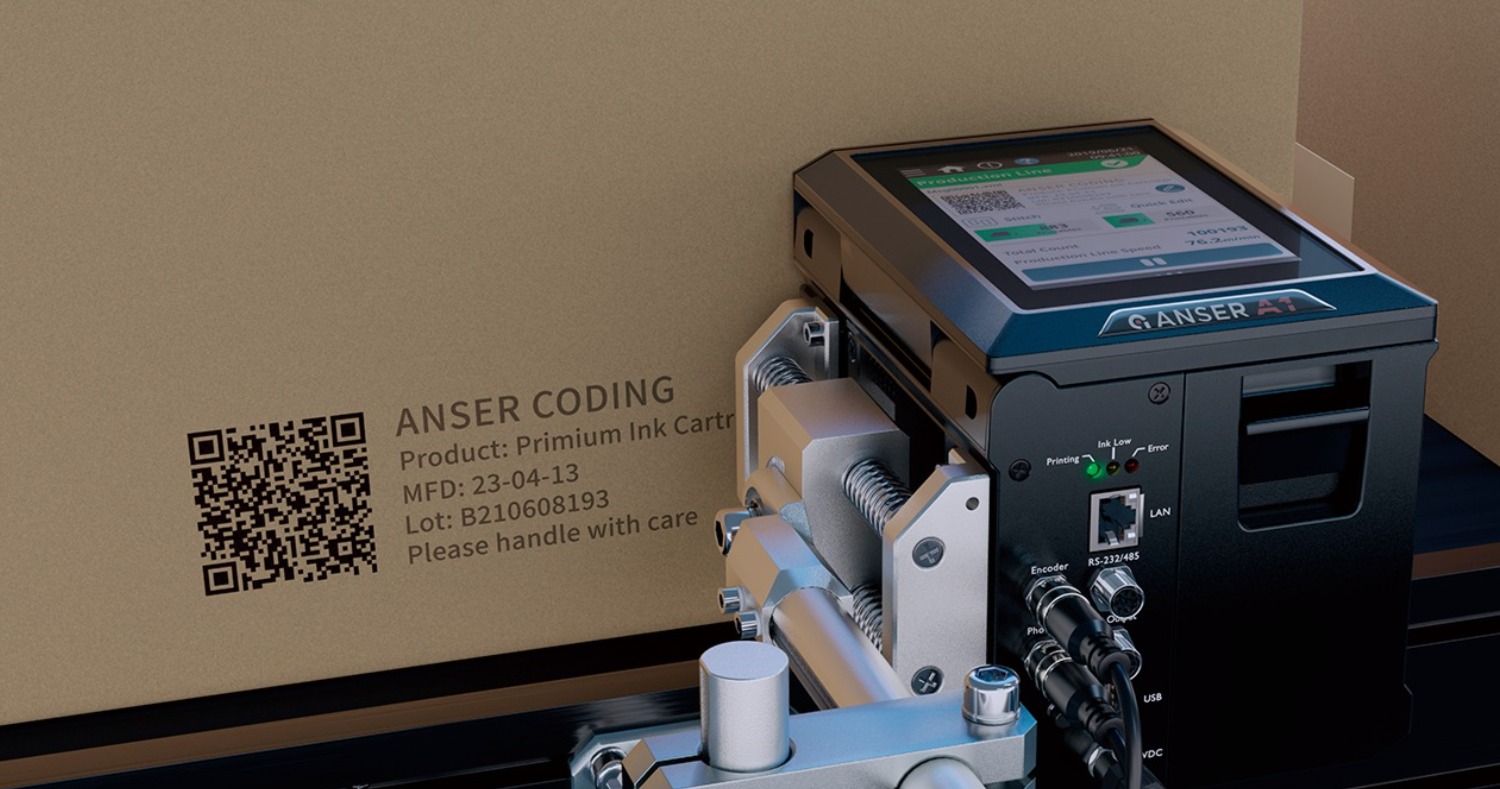

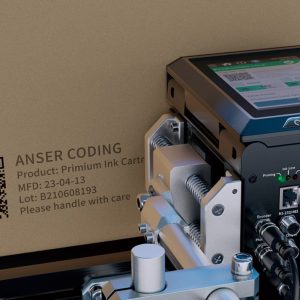

Environmentally friendly direct coding
The ANSER A1 is the first all-in-one printer to provide a flawless 2-inch print height. Reduce label usage and waste with direct box printing to achieve environmental sustainability.
Easy setup and maintenance
Effortless and maintenance-free printer setup to reduce unnecessary costs.
Low cost of ownership
With advanced software functionality to achieve the best cost per print, the ANSER A1 is an extremely cost-effective encoding solution.

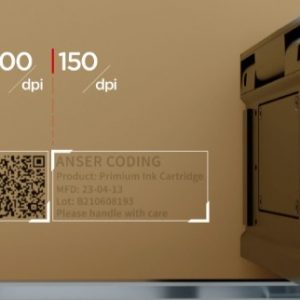

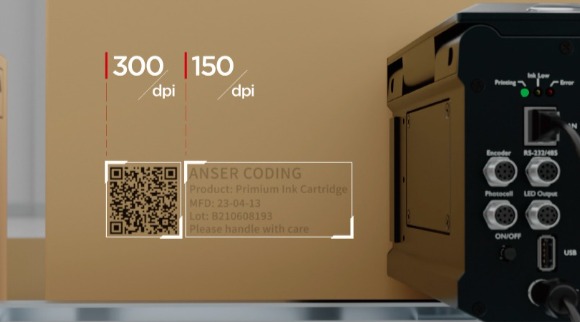

Multi-DPI setting
A high-resolution 2-inch printed message can be printed using two 1-inch ANSER cartridges, thus providing a lower-cost alternative for labeling secondary and tertiary packaging.

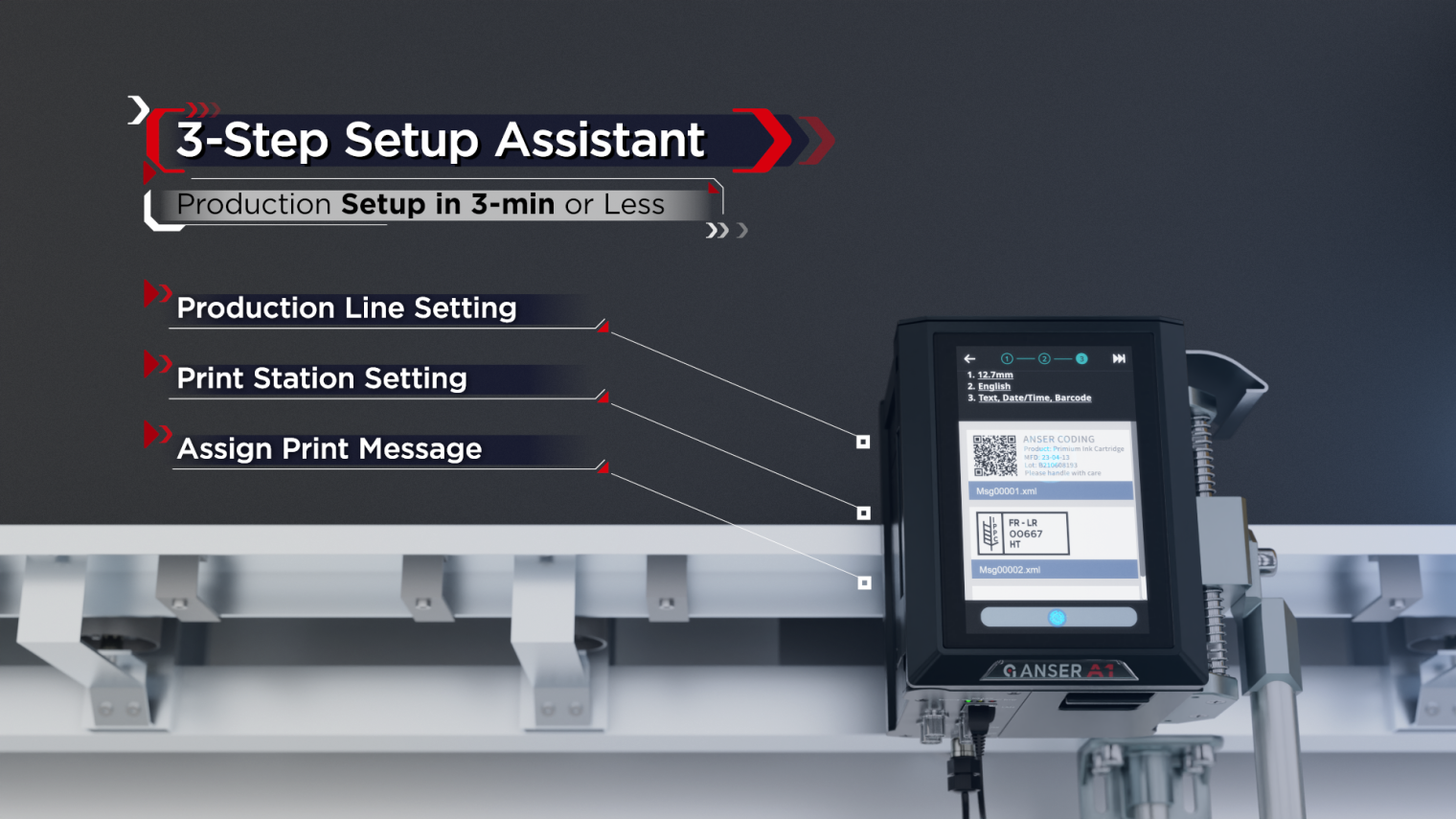

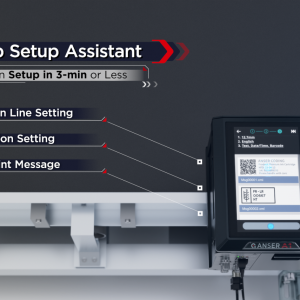

“Smart Assistant” for setup
Simple 3-step setup instructions
will get you up and running with your printer in 3 minutes or less!
A1 Specifications
Display
5” Color LCD Capacitive Touchscreen 480×800 (portrait) I/O Ports USB 2.0 port x 1
RS-485 & RS-232 port x 1
Encoder port x 1 (NPN)
Sensor port x 1 (NPN)
Print Height
Single Printhead:
12.7mm (0.5 inch) or 25.4mm(1.0 inch)
Stitch Printheads:
12.7mm x 2 @ 24.75mm (0.98 inch) or
25.4mm x 2 @ 50mm (1.97 inch) Power Input AC 100V~240V, 50/60Hz (90Watt)
Printing Functions
Static Data: Text, Logo,
Dynamic Data: String, Shift, Counter, Production Date, Expiration Date
Operating Temp.
0~40°C (32°F – 104°F)
Fonts & Size
True Type Fonts: Amiri, Arimo, DejaVu Sans, Noto Sans, Noto Sans CJK TC, Noto Sans JP, Noto Sans KR, Noto Sans TC, OCR-B, Open Sans, and Sarabum
System Language
(and input lang.) Arabic, Bulgarian, Serbian, Czech, German, English, Spanish, French, Korean, Italian, Hungarian, Dutch, Japanese, Polish, Portuguese, Russian, Romanian, Slovak, Swedish, Thai, Vietnamese, Turkish, Chinese Traditional, and Chinese Simplified Operating RH
0%~90%, Non-condensing
Barcode Type
EAN-8, EAN-13, EAN-14, EAN128, UPCA, UPCE, CODE39, CODE128, ITF14 (SCC-14), NVE18 (SSCC-18), INTER25, CODABAR, PDF417, DATAMATRIX, QR code, GS1 (DataMatrix, DataBar, DataBar EXP, DataBar-Limited, DataBar-Limited Composite, DataBar-Stacked, DataBar-Stacked Composite, QR code), DUN14, and Aztec Code
Dimensions & Weight
161.5mm (L) x 125mm (H) x 136mm (W)
(6.36 inch x 4.92 inch x 5.35 inch)
2kg (4.41lb)
