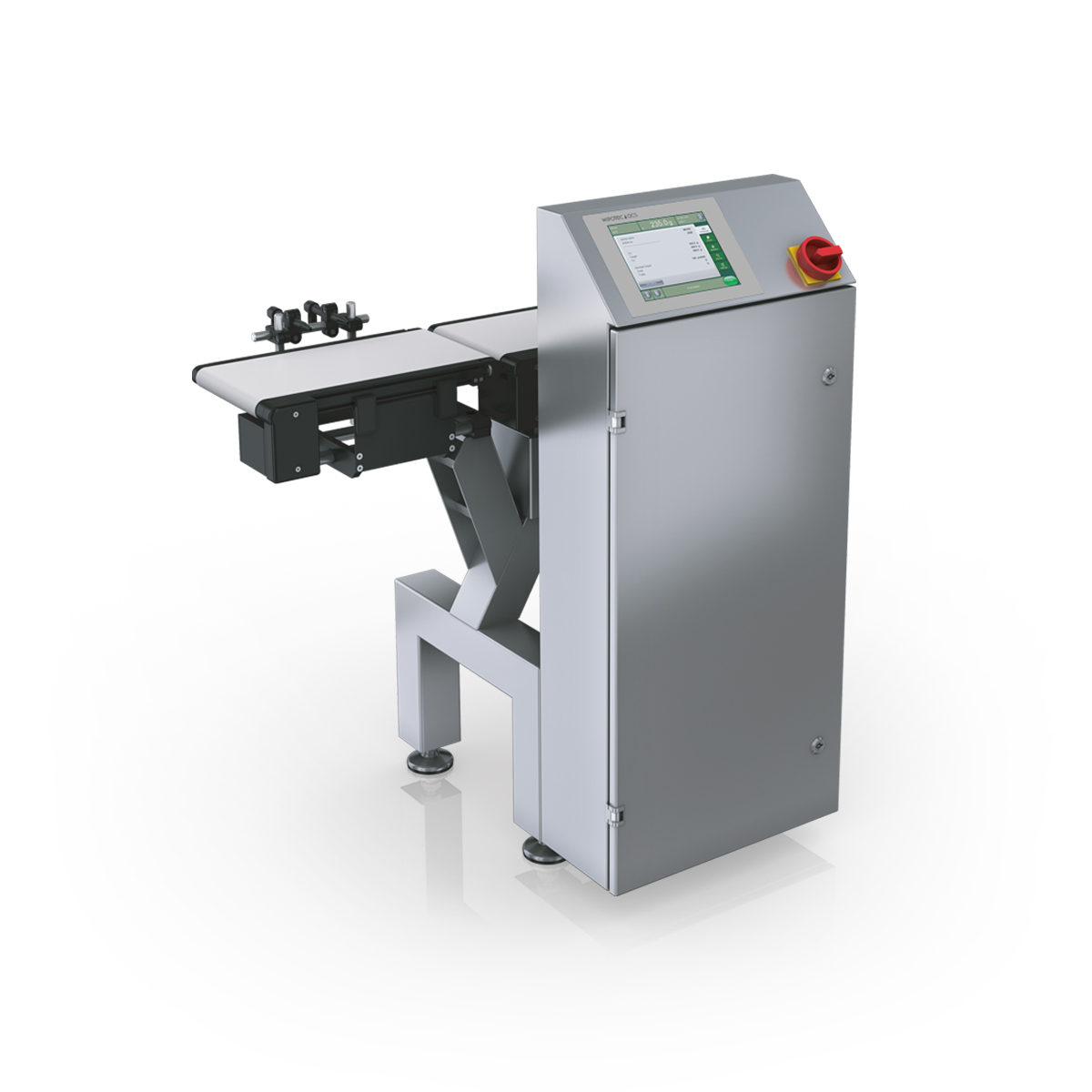

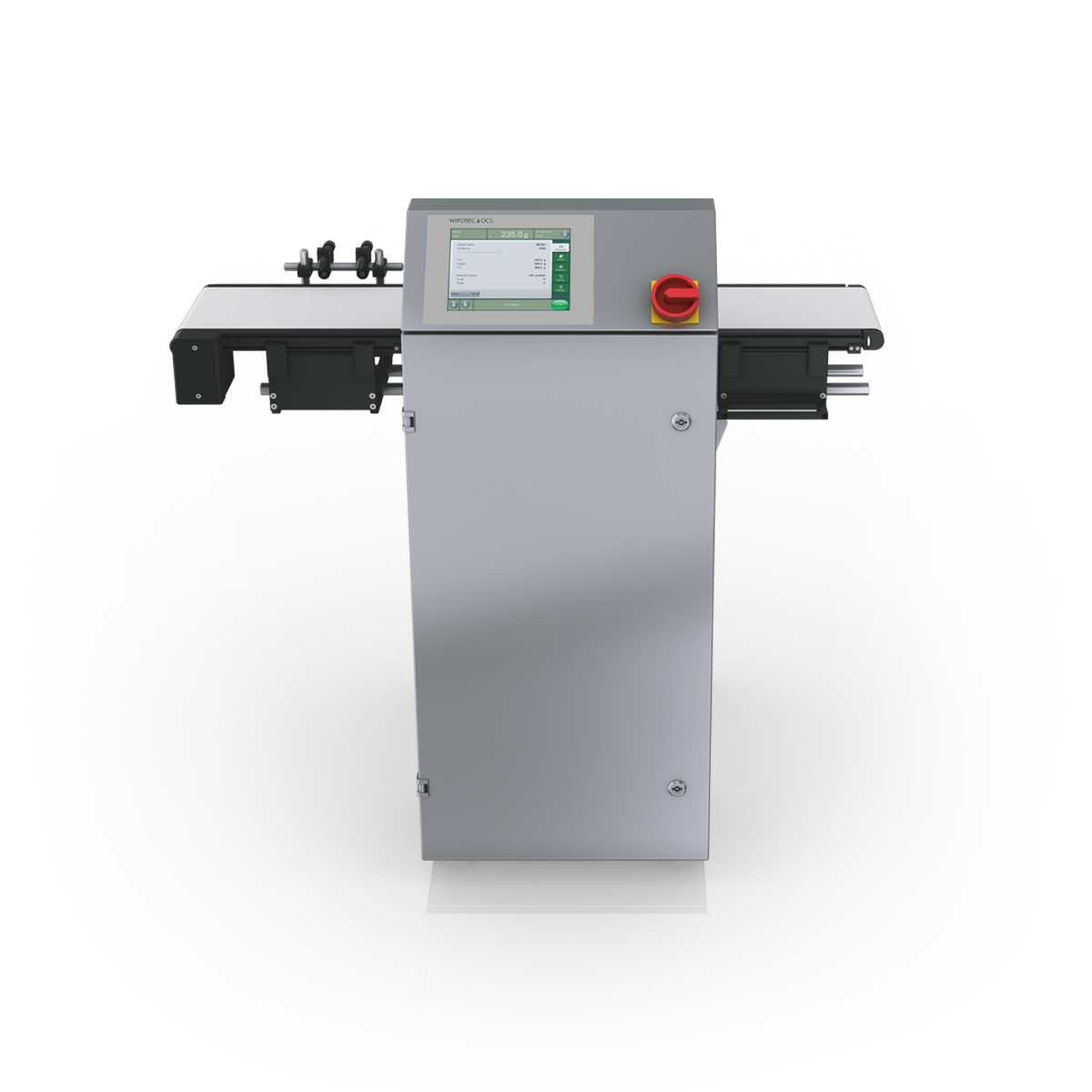

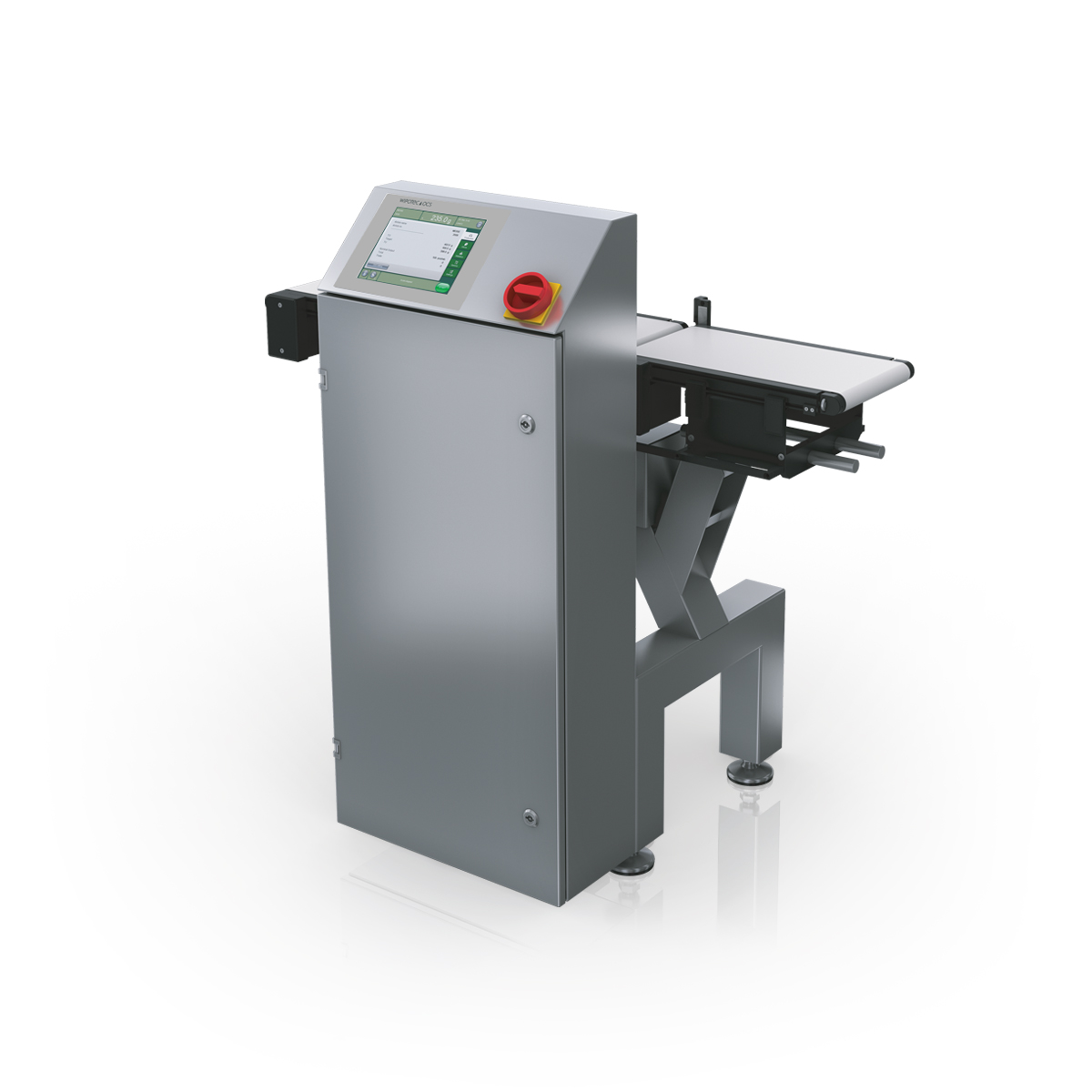

Reliability and transparency of production data are the basis of all planning. The EC-E checkweigher from WIPOTEC-OCS guarantees 100% data capture in ongoing production.
If you need an entry-level checkweigher capable of capturing 150 weight values per minute, then the EC-E is the right choice for you. The intuitive user interface ensures convenient operation via a clearly structured, 8-inch color touchscreen.The EC-E checkweigher precisely weighs each individual product, records individual values, and ejects incorrect weight packages via the fully automated sorter. Your data is correctly and completely collected and you have the certainty that only factory compliant products leave your production halls. The checkweighers ease of use virtually excludes all incorrect entries.
MAIN CHARACTERISTICS:
- WIPOTEC weighing technology with EMFR * weigh cells
- Stainless steel frame
- Stainless steel cabinet with integrated control system
- Three NT30 belts (feed, weighing and conveyor belt)
- Lightweight construction
- Maintenance-free servo drives
- Compressed air sorting connector
- User interface with 8-inch touchscreen color TFT touch screen
- Memory for 50 different product parameters (option to expand to 200)
- Line synchronization with potential-free switching of contacts / binary signals
- Extensive statistical functions / histograms
*Electro-Magnetic Force Restoration (EMFR)
